D-Power AL 35-15 Brushless Motor

With the D-Power Brushless motor series we offer you a wide range of high quality drives. The external rotors have finest balanced bells, which guarantee a perfect concentricity. Due to the high-quality neodymium magnets and the windings made of especially pure copper, the D-Power motors achieve a high efficiency.

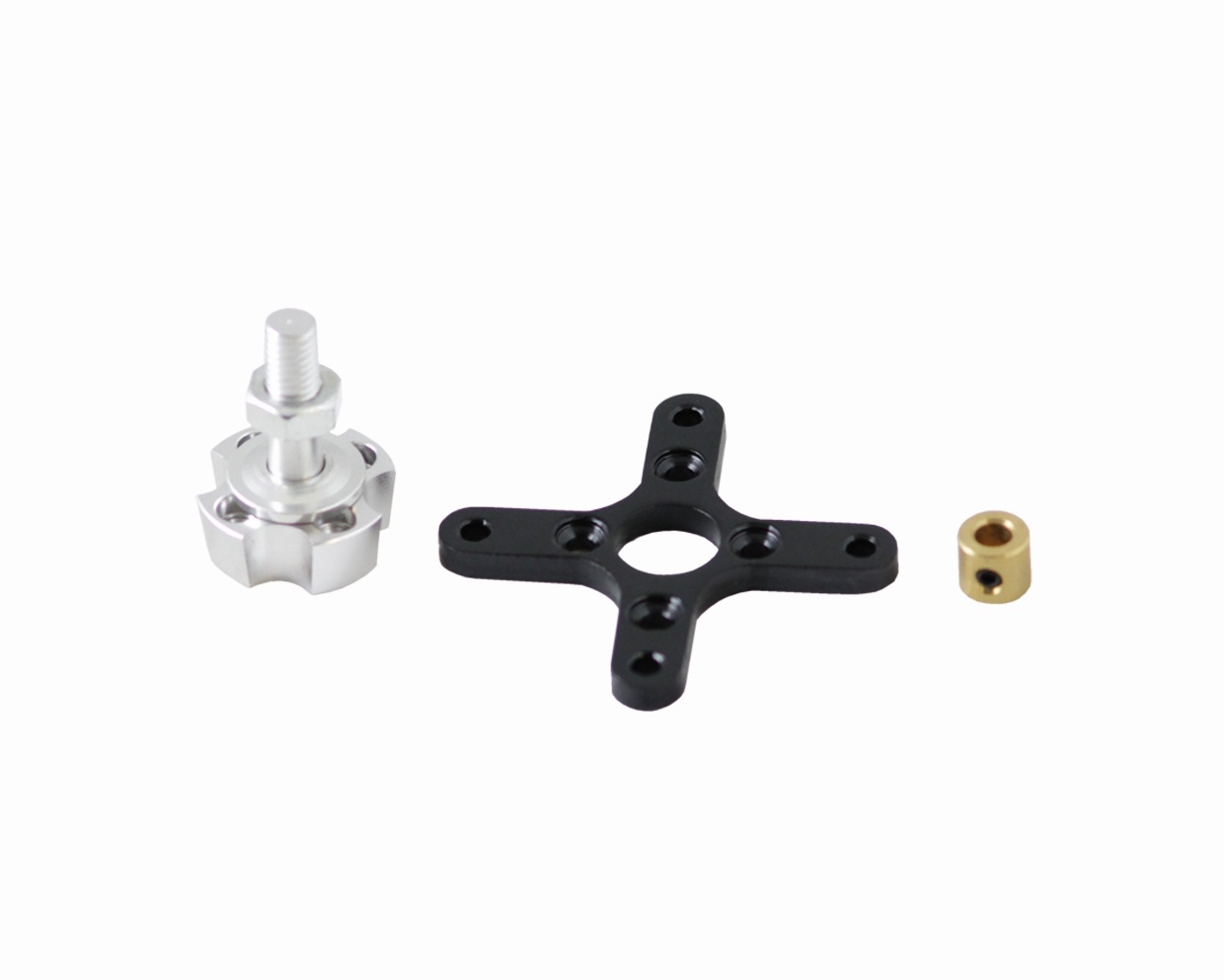

The outrunners can be mounted on both sides. Included in the delivery of the motors are prop adapter, rear wall mounting and mounting material.

All motors were measured and tested in Germany by a well-known engineer. The data provided by the manufacturer were confirmed by the technical measurements.

Features:

Very high torque High quality neodymium magnets Double ball bearing Concentricity optimised, finely balanced aluminium bells CNC-milled from high-quality aluminium Supplied complete with prop adapter, rear wall attachment and mounting material

Technical data:

Dimensions: 35 x 35.2 mm Shaft Ø: 4,0 Lipo / NC cells: 2 - 4 / 6 - 9 No-load current: 2.2A recommended current: 38A Current short term: 42A Idle speed: 1520 rpm/V weight: 95g thrust: approx. 1300g

Propellers recommendation:

number of cells - propeller - current 2S Lipo 11 x 7 - 45A 3S Lipo: 9 x 4.5 - 43A 4S Lipo: 8 x 4 - 44A
